Description
|
Operating System |
Android 12, 13+ (when updated) |
|
Apple CarPlay |
Wireless + wired Apple CarPlay ( Z-LINK) |
|
Android Auto |
Wireless + wired Android Auto (Z-LINK) |
|
CHIP |
VW345DFHVOLT6S (late 2020) |
|

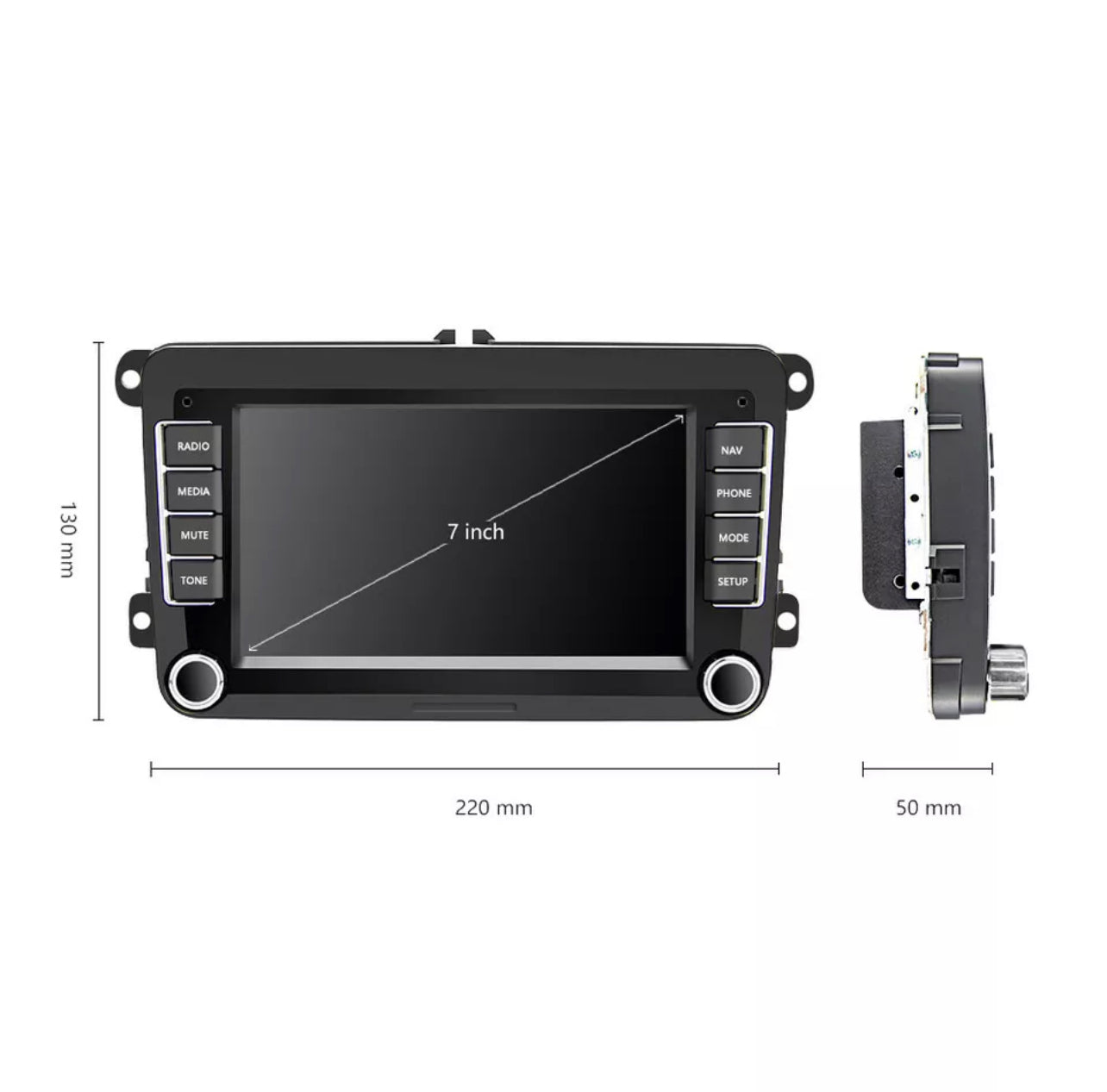

Screen Size |
7 inch |
|
DSP |
32EQ |
|
Brand |
Bosion |
|
Amplifier |
Bosion – AX7315HX |
| Model NO. |
(A3037) - (A3040) |
|
Storage Options |
1gb x 16gb (A2743 ) 2gb x 32gb (A3040) |
|
Radio |
FM |
|
Wiring |
Plug and play (please read below for CANBUS information) |
|
Connection |
WiFi, USB, Bluetooth |
|
Voltage |
DC 12V |
|
Application |
From Google Play store |
|
Features |
Bluetooth Phone Link Mirror Screen Split Screen Retain steering wheel controls Hi-Res Audio WiFi GPS WAZE Spotify Movies Videos MP3/4 Player |
|
WIFI |
Built-in |
|
Internet |
WiFi, HotSpot |
|
GPS Maps |
Online & offline maps |
| Package includes |
1 x Audio system 1 x GPS antenna 1 x Rear camera input cable 1 x RCA cable 1 x Facia kit 2 x USB cable 4 x Screw 1 x Plug and play harness 1 x Optional purchase of an ADH or LED Camera (click here for more info) |

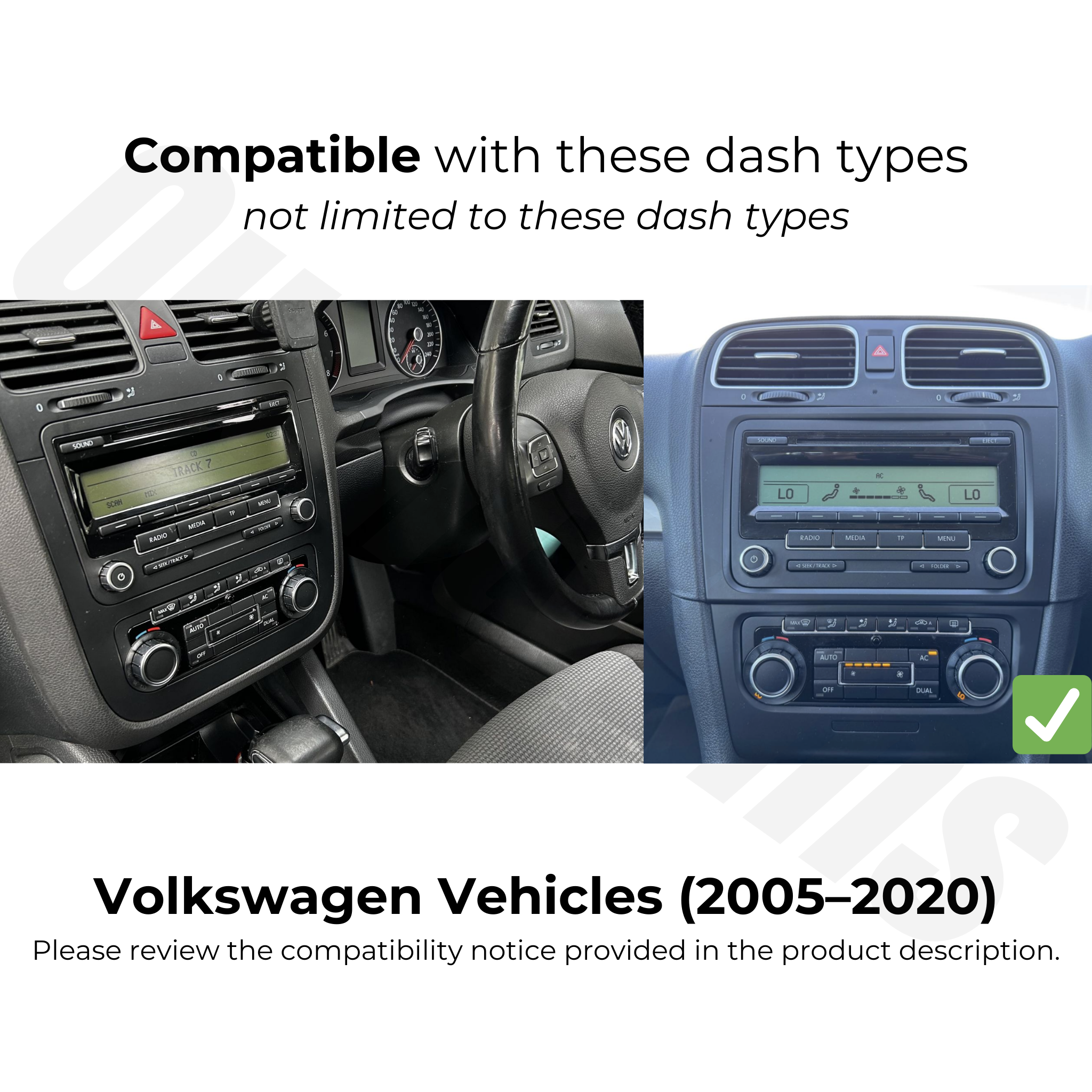

Fits:
- VW Amarok 2010, 2011, 2012, 2013
- VW Golf Estate 2009, 2010, 2011, 2012
- VW Touran 2003, 2004, 2005, 2006, 2007, 2008, 2009 2010, 2011, 2012, 2013
- VW Beetle 2011, 2012, 2013
- VW Golf GTI MK5 & MK6 2003, 2004, 2005, 2006, 2007, 2008, 2009 2010, 2011, 2012 (Please ensure you have the same OEM and dimensions as the last images)
- Volkswagen Jetta 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- Volkswagen Jetta GLI 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW Polo sedan 2012, 2013
- VW Polo V 6R 2009, 2010, 2011, 2012, 2013
- VW Polo 2009, 2010, 2011, 2012, 2013
- VW Multivan T5 2012, 2012, 2013
- VW Golf R 2010, 2011, 2012, 2013 (Please ensure you have the same OEM and dimensions as the last images)
- VW Golf Wagon 2010, 2011, 2012, 2013
- VW Passat Wagon 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW Passat sedan 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW Passat CC 2008, 2009, 2010, 2011, 2012, 2013
- VW Scirocco 2008, 2009, 2010, 2011, 2012, 2013
- VW Caddy 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW Golf Plus 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW Passat 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW Tiguan 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW OS 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW Rabbit 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW WT5 Caravelle 2010
- VW Golf Cabriolet 2011, 2012, 2013
- VW Passat Estate 2005, 2006, 2007, 2008, 2009 2010, 2011, 2012
- VW Passat All track 2012, 2013
- VW Shoran 2010, 2011, 2012, 2013
- VW WT5 Transporter 2010, 2011, 2012, 2013, 2014
- VW T5 Transporter 2010, 2011, 2012, 2013
- VW Passat CC 2008. 2009, 2010, 2011, 2012, 2013
- VW EOS 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
- VW WT5 caravels 2010
- VW WT5 Transporter 2010, 2011, 2012, 2013, 2014
NOTE:
Before making a purchase please understand the following:
- We provide a standard VW 36 and 40 PIN main plug and play harness.
- This fits 90% of VW cars.
- If during installation you find you need a different pin please reach out to us and we will post the new set of plugs to you if we have them.
- If your car has a factory head unit you can find out what pin set is needed on the internet or,
- You can also remove your head unit and count the pins or send us an image of the plugs in the back of the head unit:
- Above we have outlined which cars this unit fits - however the pin offset may be different for some.
Please note: In some VW models, the CANBUS system may require bypassing, which could involve minor cable modifications. Since most VW vehicles don't support aftermarket CANBUS installations, you may need to adjust the wiring slightly. For further details or assistance, please get in touch with us.
For more information please contact us at info@Qualitydins.com.au
