Steering wheel controls: this kit keeps the basic buttons that use simple wiring such as volume and next or previous track. The other buttons, like the phone and menu controls, won’t work because those rely on a CANBUS computer signal that this harness does not use. If you install the controller dial, it becomes the main communication system for the head unit and takes the place of CANBUS, so a CANBUS module cannot be added. You will still keep the everyday analogue buttons, but the CANBUS-based buttons will not link with this kit. For more information, feel free to reach out.
Description
Apple CarPlay
Wireless & wired (via Z-Link)
Android Auto
Wireless & wired (via Z-Link)
Model No.
A7134 (Non-Amplified | No HMI Commander Switch)
Screen Size
9 inch
DSP
32EQ
Brand
Bosion
RAM Options
2GB / 4GB / 8GB
ROM Options
64GB / 128GB
Radio
FM / RDS
Wiring
Vehicle specific plug & play harness + RCA cables + GPS antenna
Connection
WiFi, USB & Bluetooth
Voltage
DC 12V
Features
-
Bluetooth
-
Phone Link
-
Mirror Screen
-
Split Screen
-
Hi-Res Audio
-
Retains Steering Wheel Controls (read important information below)
-
WiFi
-
Spotify
-
Waze
-
YouTube
-
Netflix
-
Download apps from the Google Play Store
-
GPS
-
MP3/MP4 Player
-
Built-in WiFi
-
4x45W Output
Internet
WiFi & Hotspot supported
GPS Navigation
Supports both online & offline maps
Reverse Camera Compatibility
AHD / CVBS signal supported
Supports
DVR, OBD2 (ELM327), DAB+, FM/RDS Transmitter, Rearview Camera, Mirror Screen (Android & iPhone), Steering Wheel Controls, and more
Package Includes
-
1 × Audio System
-
1 × GPS Antenna
-
1 × Rear Camera Input Cable
-
1 × Free Reverse Camera (optional AHD camera upgrade available)
-
1 × RCA Cable
-
2 × USB Cables
-
4 × Mounting Screws
-

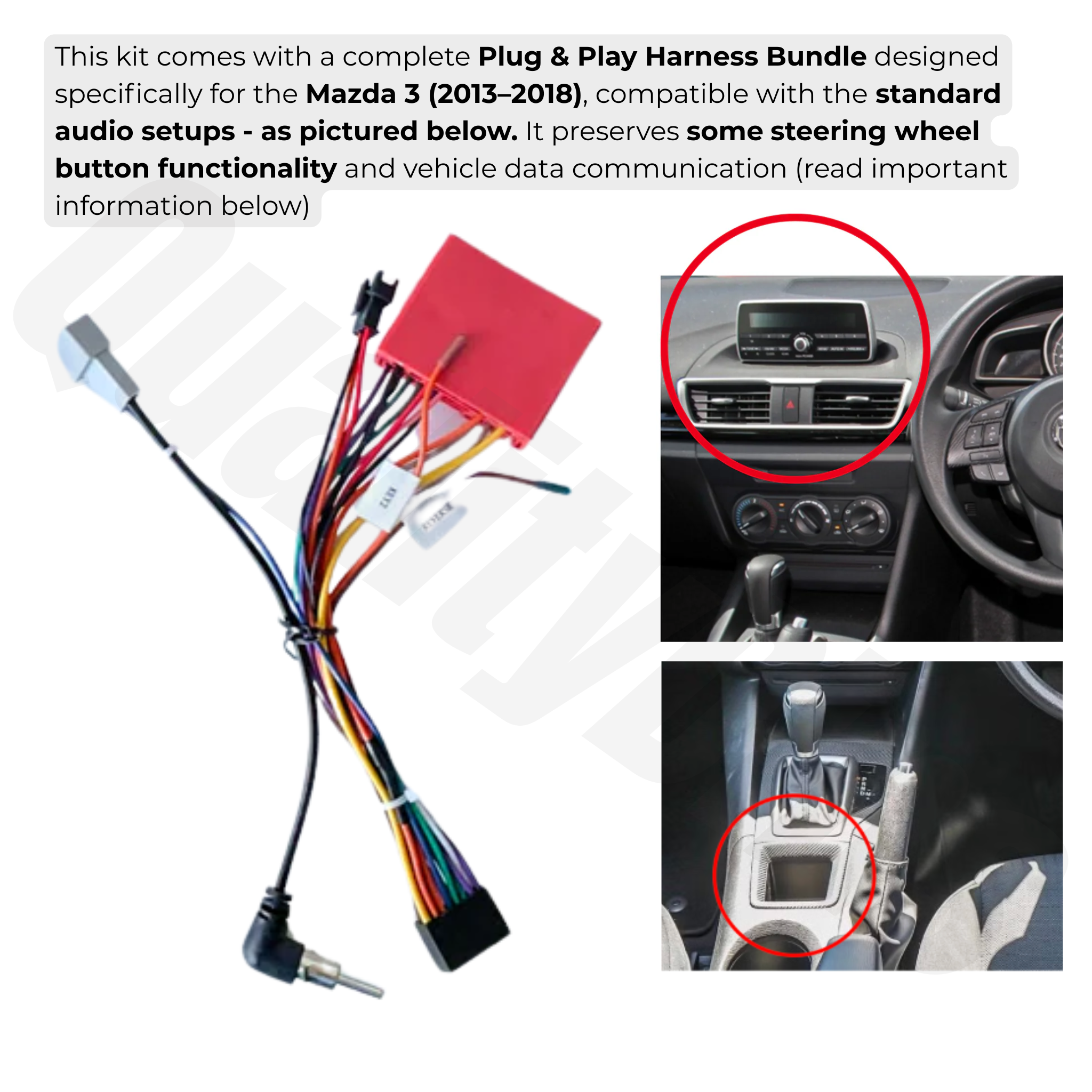

1 × Plug & Play Harness
-
1 × Fascia Kit
-
1 × Mouse Controller
Fits: Mazda 3 Non Touchscreen 2013, 2014, 2015, 2016, 2017, 2018
⚙️ Additional Information (click to expand)

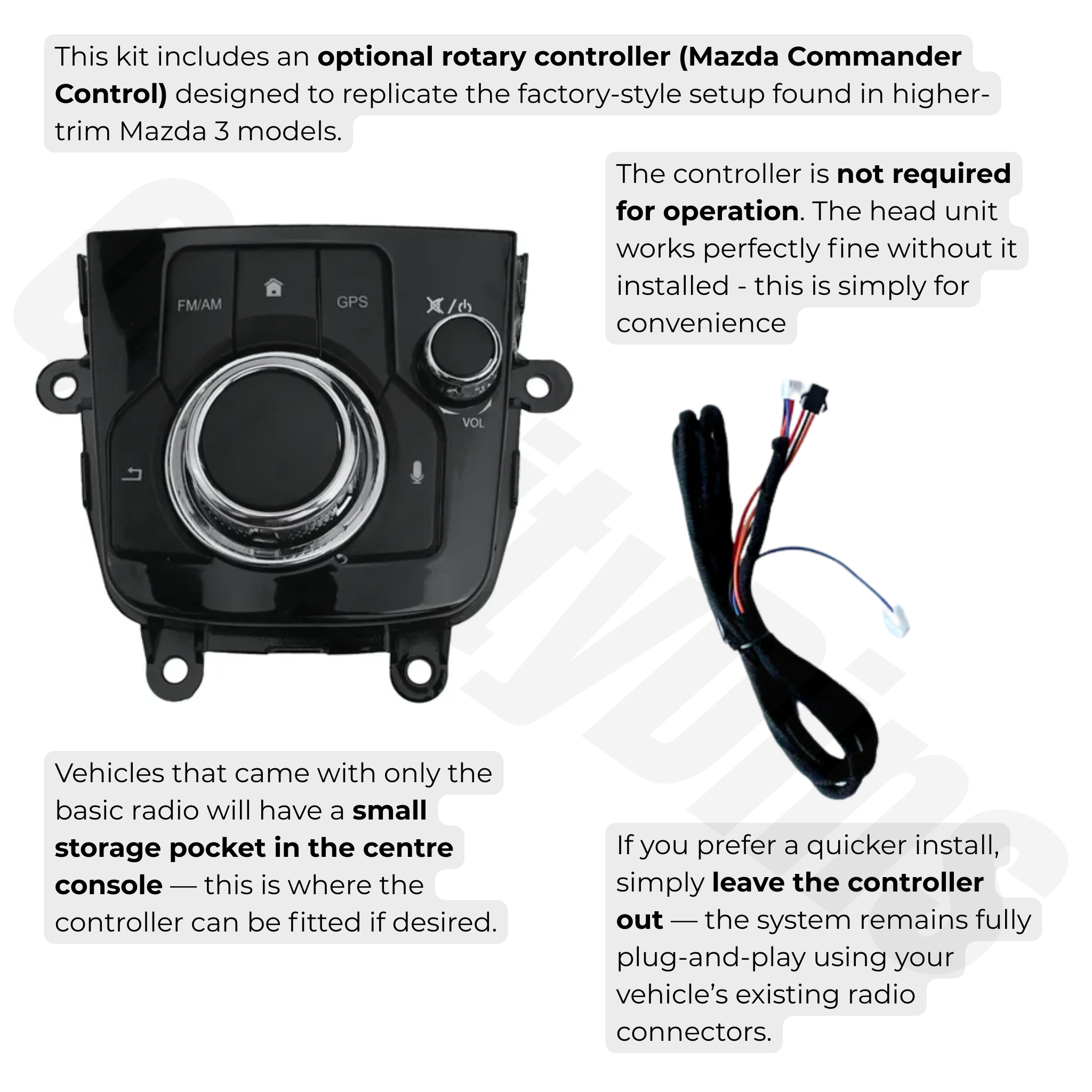

This kit includes an optional rotary controller (Mazda Commander Control) designed to replicate the factory-style setup found in higher-trim Mazda 3 models.
Vehicles that came with only the basic radio will have a small storage pocket in the centre console — this is where the controller can be fitted if desired.
The controller is not required for operation. The head unit works perfectly with the touchscreen and some steering wheel controls alone.
If you wish to install the controller, it mounts neatly in place of the storage pocket and connects via a dedicated cable supplied in the kit. However, installation requires partial disassembly of the centre console to run the cable between the screen and the controller, which is detailed in the installation guide.
If you prefer a quicker install, simply leave the controller out — the system remains fully plug-and-play using your vehicle’s existing radio connectors.

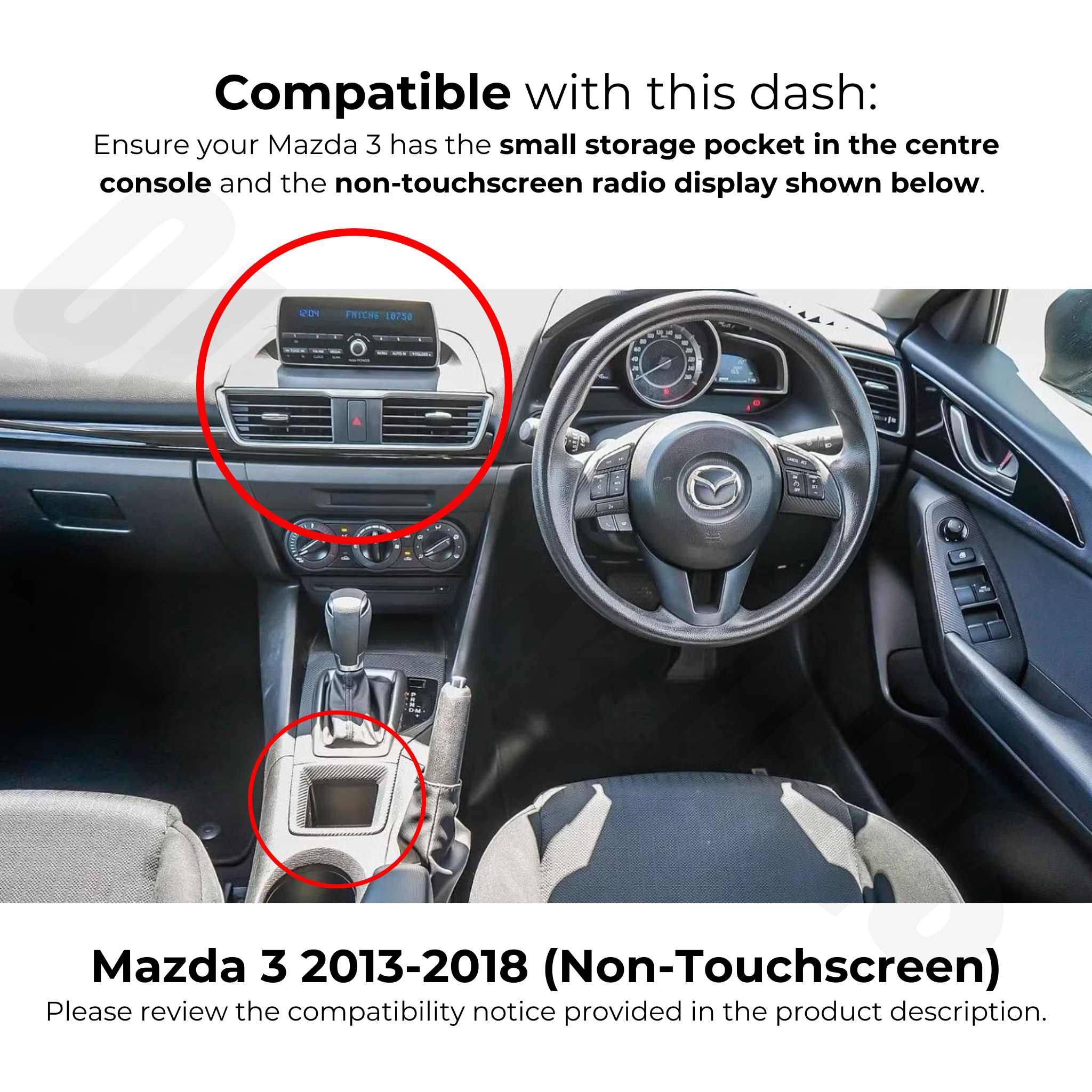

📦 Compatibility Information
✅ Must have storage pocket in centre console

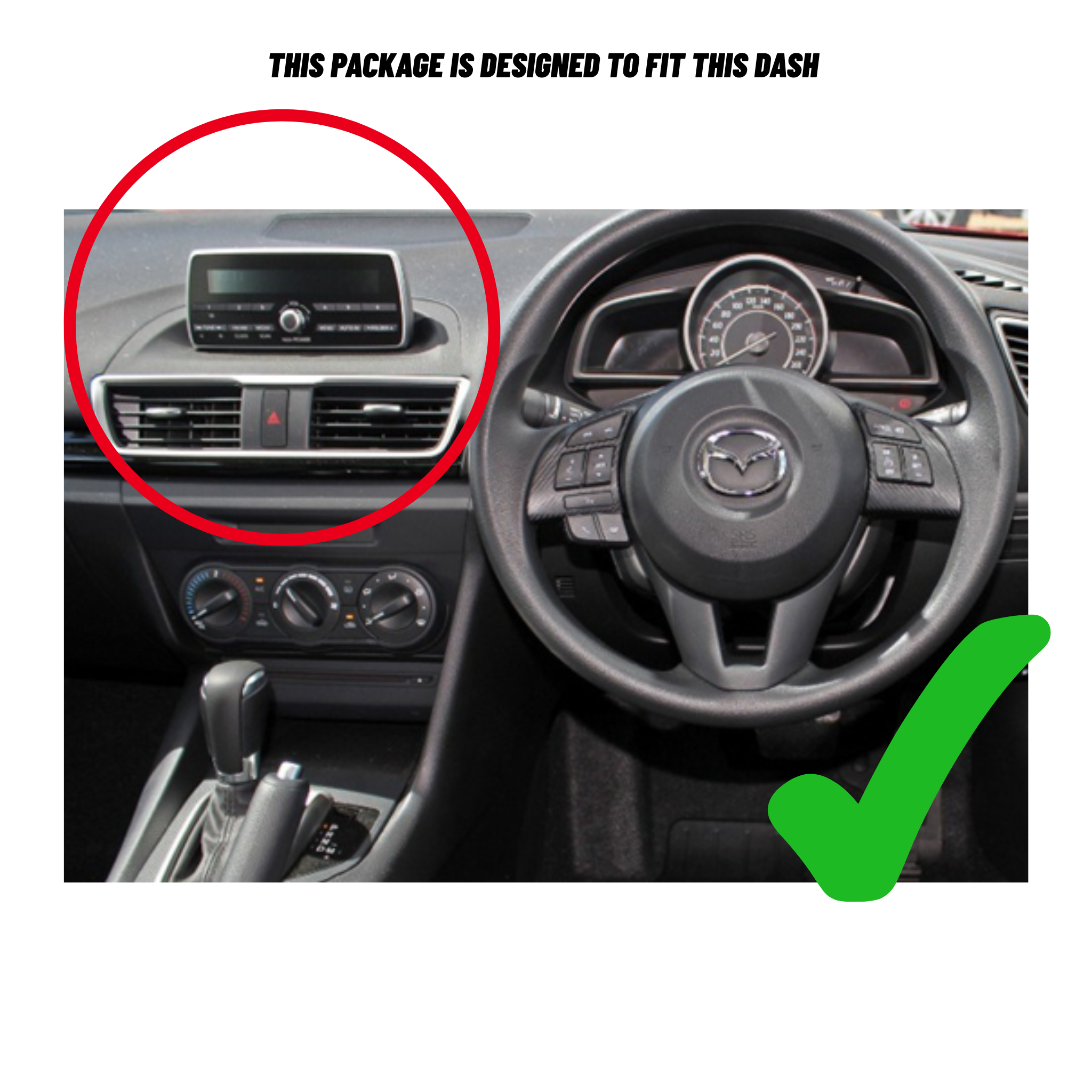

✅ Must have non-touchscreen radio (as shown)

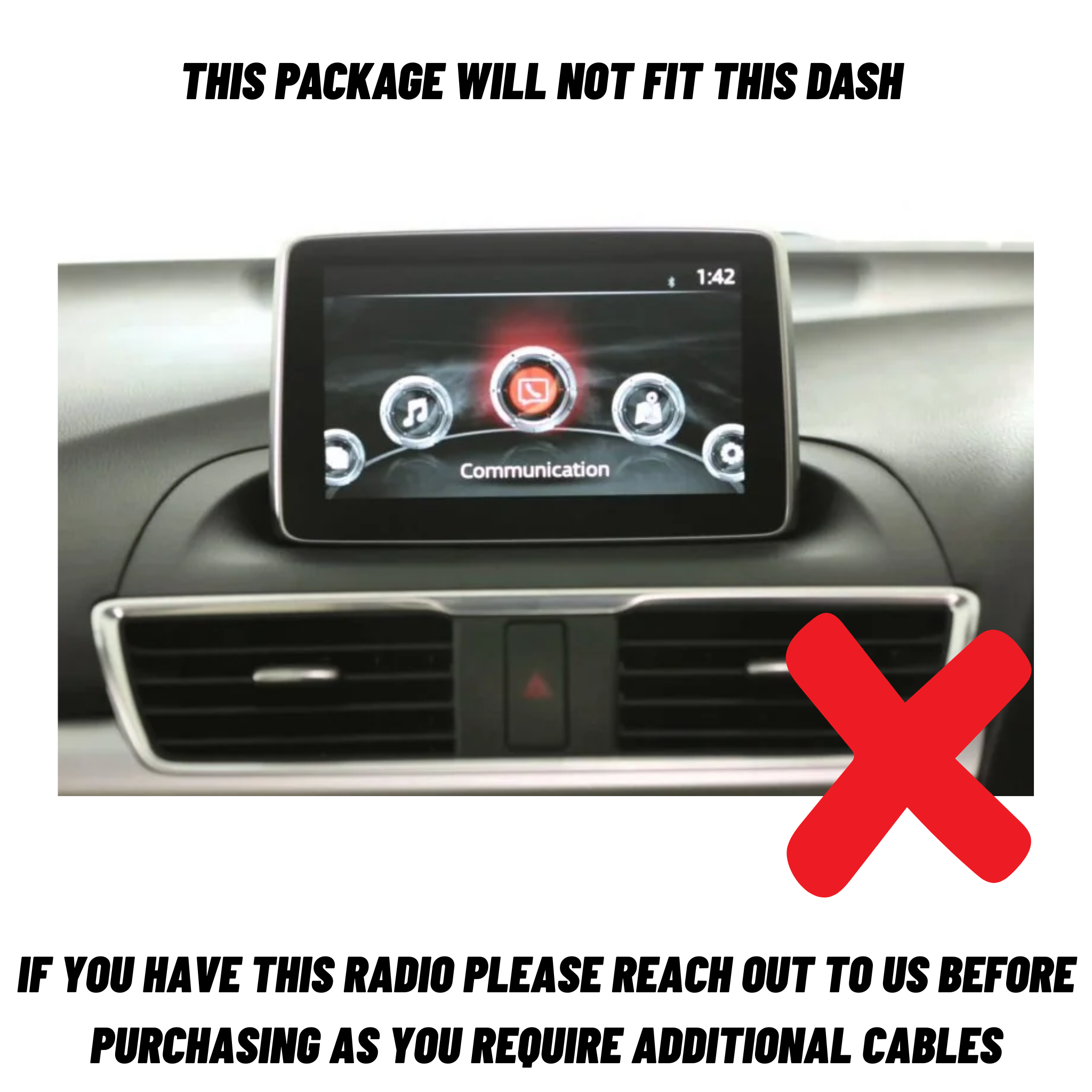

🚫 Not compatible with factory touchscreen models
